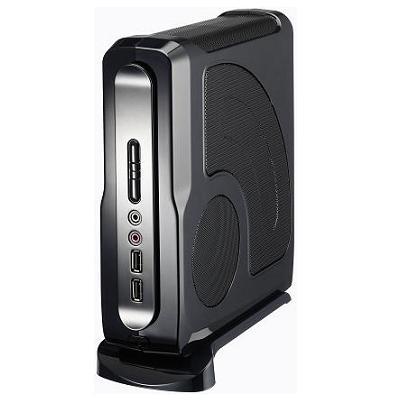

NC Thinclient-7w

FEATURES

Ncore ultra slim size Thin Client Solution with slim & compact design

Embedded VIA C7 1.6GHz processor

Low power consumption

Easy installation design with flexible specification

2 Front USB ports & Audio Ports

Ncore Thin Client Advance Linux with Open Office

Can Connect Any Printers & Wireless Optional

Dimension: 218(H) x 255(W) x 85(D) mm

Form Factor

Mini ITX

CPU Supply

VIA C7-D 1.6GHz

Chipset

VIA CN700 + VT8237R Plus

Memory

 512/1GB DDR2 Memory

Graphics

 Integrated Graphics

Disk on Module

 512/1GB Flash Disk on Module with Ncore Thin Clinet OS

LAN Chip

 Realtek RTL8100C 10/100 Mbit

Sound Chip

 Realtek ALC655 CODEC - Supports 2 channel audioLine Out, MIC In

Onboard Connectors

1 x 20-pin ATX power connector
1 x IDE 40 pin connector with UDMA 100/ATA 133 support
1 x IDE 44 pin connector with UDMA 100/ATA 133 support
2 x SATA connectors
1 x CPU fan connector
1 x system fan connector
1 x front panel connector
1 x front audio connector
1 x COM2 connector
2 x USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
1 x IR connector
1 x LAN LED connector

Back Panel I/O

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x COM1 port
1 x VGA port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks (Line Out / MIC In )

Power

DC to DC board with adapter 60W
